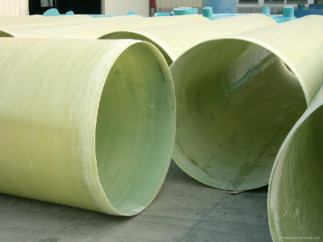

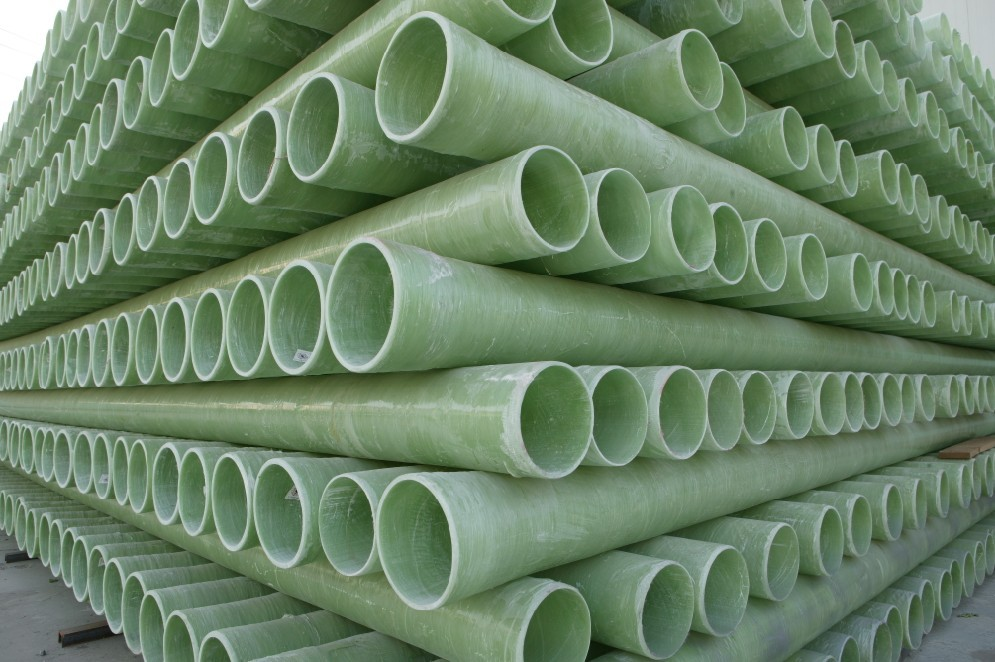

GRP Pipes

  • Manufacturing Process: GRP pipes are manufactured by Dual helical filament winding process (Nominal size25mm to 2600mm) or Continuous Winding Process (Nominal size 250mm to 4000mm).
  • Type of Resin: Pipes are classified as GRP, GRV and GRE, according to the type of resin usedfor the manufacturing.
    GRP – Glass Reinforced Polyester (Isophthalic resin)
    GRV – Glass Reinforced Vinylester (Vinylester resin)
    GRE – Glass Reinforced Epoxy (Epoxy resin)
  • Pressure Class: Pipes and fittings are classified according to the Nominal pressure. Standard pressure classesare 4, 6, 10, 16, 20 and 25 bar. Intermediate and higher pressure classes are considered on request ordepending on the design condition.
  • Pipe Stiffness: Pipes are also classified according to specific pipe stiffness. Standard stiffness classes are1250, 2500, 5000 and 10000 N/m². Intermediate or higher stiffness classes are available on request ordepending on the design condition.
